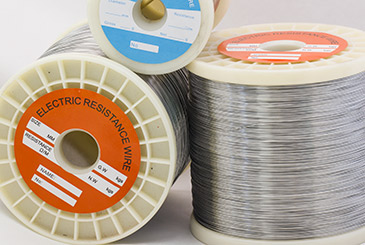

FeCrAl heating resistance wire

FERRO-CHROME-ALUMINUM alloy WIREs

Iron-chromium-aluminium resistance wire has a high resistivity, which means it can generate heat efficiently. It can also withstand high temperatures, making it suitable for use in high-temperature environments.This type of resistance wire is known for its durability and longevity. It can maintain its performance over a long period of time, even under extreme conditions.This resistance wire has good oxidation resistance and can resist oxidation and corrosion, ensuring long-term stable performance.Compared with some other high-temperature resistance materials, iron-chromium-aluminum resistance wire has a relatively high cost performance, making it an economical choice.Due to its excellent properties, iron-chromium-aluminum resistance wire can be widely used in various industries, such as electric heating, industrial furnaces, and temperature measurement. Our company has full ranges of 0Cr25Al5, 0Cr23Al5, 0Cr20Al3, 0Cr20Al6RE, 1Cr13Al4, 0Cr21Al6Nb, 0Cr24Al6RE, 0Cr27Al7Mo2 wires and strips. Especially 0Cr21Al6Nb and 0Cr25Al5 Golden Finished Wires(diameter from 1.0-3.9mm) and Blue Finished Wires(diameter from 4.0-10.0mm) have excellent quality and beautiful appearance.

Main properties and characteristics of Fe-Cr-Al high resistance heating alloy materials
Alloy Name Properties		1Cr13Al4	0Cr25Al5	0Cr20Al6RE	0Cr23Al5	0Cr20Al3	0Cr21Al6Nb	0Cr24Al6RE	0Cr27Al7Mo2
Main Chemical Components	Cr	12.0-15.0	23.0-26.0	19.0-21.0	20.5-23.5	18.0-21.0	21.0-23.0	22.0-26.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-6.0	4.2-5.3	3.0-4.2	5.0-7.0	5.0-7.0	6.0-7.0
	Re	Opportune	Opportune	0.04-1.0	Opportune	Opportune	Opportune	0.04-1.0	Opportune
	Fe	Remainder	Remainder	Remainder	Remainder	Remainder	Remainder	Remainder	Remainder
	Other						Nb0.5		Mo1.8-2.2

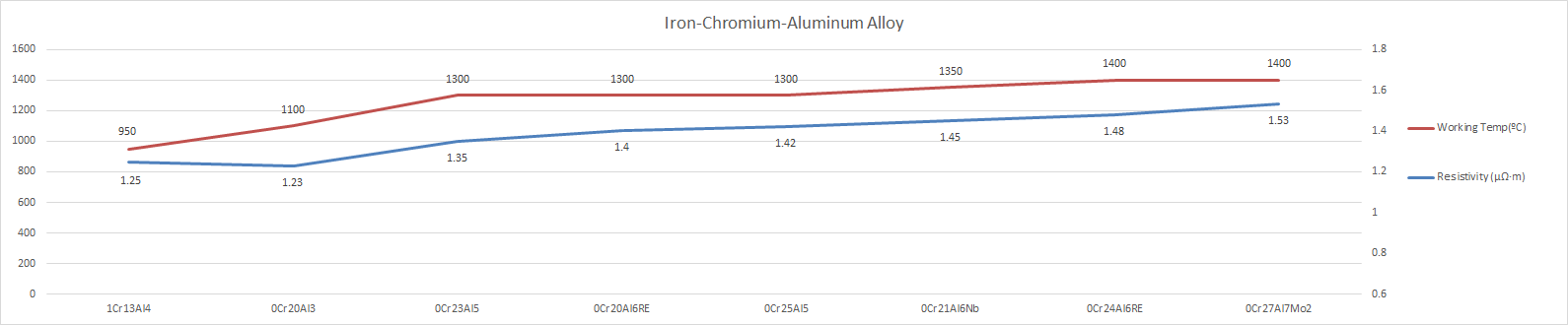

Maximum operating temperature		950	1300	1300	1300	1100	1350	1400	1400
Resistivity 20ºC (μΩ·m)		1.25±0.08	1.42±0.07	1.40±0.07	1.35±0.07	1.23±0.07	1.45±0.07	1.48±0.07	1.53±0.07
Density (g/cm ³ )		7.40	7.10	7.20	7.25	7.35	7.10	7.1	7.10
Coefficient of heat conductivity (20ºC) (W/m·K)		15	13	13	13	13	13	13	13
Coefficient of linear expansion (20ºC ~ 1000ºC) (α×10 ^-6 /ºC)		15.4	15.0	14.0	15.0	13.5	16.0	16.0	16.0
Melting point(ºC)		1450	1500	1500	1500	1500	1510	1520	1520
Tensile strength(R _m /MPa)		≥580	≥600	≥600	≥600	≥580	≥650	≥680	≥680
Elongation after Fracture (A/%)		≥12	≥12	≥12	≥12	≥12	≥10	≥10	≥10
Accelerated life test (Hours/ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥80/1350	≥50/1350
Microscopic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetism		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Technical parameters of Ferro-Chromium-Aluminum resistance alloy wires(1)
Diameter (mm)	Sectional area (mm ² )	1Cr13Al4(μΩ • m 1.25±0.08)			0Cr25Al5(μΩ • m 1.42±0.07)
Diameter (mm)	Sectional area (mm ² )	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)
0.10	0.0078	159.2	17206	0.0000581	180.6	17933	0.0000558
0.12	0.0113	110.5	11949	0.0000836	125.6	12453	0.0000803
0.15	0.0177	70.7	7647	0.000131	80.4	7970	0.000125
0.17	0.0227	55.1	5954	0.000168	62.6	6205	0.000161
0.19	0.0284	44.1	4766	0.000210	50.1	4959	0.000201
0.21	0.0346	36.1	3901	0.000256	41.0	4066	0.000246
0.25	0.0491	25.5	2753	0.000363	28.9	2870	0.000346
0.27	0.0573	21.8	2360	0.000424	24.8	2460	0.000407
0.29	0.0661	18.9	2046	0.000489	21.5	2132	0.000469
0.31	0.0755	16.6	1790	0.000559	18.8	1866	0.000536
0.35	0.0962	13.0	1405	0.000712	14.8	1464	0.000683
0.40	0.1257	9.95	1075	0.000930	11.3	1121	0.000892
0.45	0.1590	7.86	850	0.001177	8.93	886	0.001129
0.50	0.1963	6.37	688	0.001453	7.23	717	0.001394
0.60	0.283	4.42	480	0.002092	5.02	498	0.00201
0.70	0.385	3.25	351	0.002848	3.69	366	0.00273
0.80	0.503	2.49	269	0.003720	2.83	280	0.00357
0.90	0.636	1.96	212	0.004708	2.23	221	0.00452
1.00	0.785	1.59	172	0.005812	1.808	179.5	0.00557
1.20	1.131	1.11	119	0.008369	1.256	124.5	0.00803
1.40	1.539	0.812	87.8	0.001139	0.922	91.5	0.01093
1.60	3.01	0.622	67.2	0.01488	0.706	70.1	0.01427
1.80	2.54	0.491	53.1	0.01883	0.558	55.5	0.01803
2.00	3.14	0.398	43.0	0.02325	0.452	44.8	0.0223
2.20	3.80	0.329	35.5	0.02813	0.374	37.0	0.0270
2.50	4.91	0.255	27.5	0.03632	0.289	28.7	0.0349
2.80	6.16	0.203	21.9	0.04557	0.231	22.9	0.0437
3.00	7.07	0.1768	19.1	0.05231	0.201	19.92	0.0502
3.50	9.62	0.1299	14.0	0.07120	0.1476	14.64	0.0683
4.00	12.57	0.0995	10.75	0.09299	0.1130	11.21	0.0892
4.50	15.90	0.0786	8.50	0.1177	0.0893	8.86	0.1129
5.00	19.63	0.0637	6.88	0.1453	0.0723	7.17	0.1394
5.50	23.80	0.0526	5.69	0.1758	0.0598	5.92	0.1690
6.00	28.30	0.0442	4.78	0.2092	0.0502	4.98	0.201
6.50	33.20	0.0377	4.07	0.2456	0.0428	4.24	0.236
7.00	38.50	0.0325	3.51	0.2848	0.0369	3.66	0.273

Technical parameters of Ferro-Chromium-Aluminum resistance alloy wires(2)
Diameter (mm)	Sectional area (mm²)	0Cr23Al5(μΩ • m 1.35±0.06)			0Cr20Al3(μΩ • m 1.23±0.06)
Diameter (mm)	Sectional area (mm²)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)
0.10	0.0078	173.1	17683	0.0000566	156.6	17452	0.0000573
0.12	0.0113	119.5	12206	0.0000819	108.8	12033	0.0000831
0.15	0.0177	76.4	7793	0.000128	69.6	7692	0.000130
0.17	0.0227	59.5	6076	0.000165	54.2	5988	0.000167
0.19	0.0284	47.5	4854	0.00206	43.4	4785	0.000209
0.21	0.0346	35.5	3986	0.000276	35.5	3937	0.000254
0.25	0.0491	27.5	2809	0.000356	25.1	2770	0.000361
0.27	0.0573	21.9	2407	0.000447	21.5	2375	0.000421
0.29	0.0661	19.1	2087	0.000513	18.6	2058	0.000486
0.31	0.0755	16.8	1827	0.000583	16.3	1802	0.000555
0.35	0.0962	14.0	1434	0.000697	12.8	1414	0.000707
0.40	0.1257	10.7	1097	0.000911	9.79	1082	0.000924
0.45	0.1590	8.49	867	0.00115	7.73	855	0.00117
0.50	0.1963	6.88	703	0.00142	6.26	694	0.00144
0.60	0.283	4.77	496	0.00205	4.35	480	0.00208
0.70	0.385	3.51	358	0.00279	3.20	353	0.00283
0.80	0.503	2.69	274	0.00365	2.45	270	0.003697
0.90	0.636	2.12	217	0.00461	1.93	213	0.004675
1.00	0.785	1.72	176	0.00569	1.57	173	0.005770
1.20	1.131	1.194	122	0.00820	1.09	120	0.008313
1.40	1.539	0.877	89.6	0.01116	0.799	88.4	0.01131
1.60	3.01	0.672	68.6	0.01457	0.612	67.7	0.01477
1.80	2.54	0.532	54.3	0.01842	0.483	53.56	0.01867
2.00	3.14	0.430	43.9	0.02277	0.392	43.33	0.02308
2.20	3.80	0.355	36.3	0.02755	0.324	35.80	0.02793
2.50	4.91	0.275	28.1	0.03849	0.251	27.71	0.03609
3.00	7.07	0.191	19.5	0.05126	0.1740	19.25	0.05196
3.50	9.62	0.140	14.3	0.06975	0.1278	14.14	0.07071
4.00	12.57	0.107	11.0	0.09113	0.0979	10.82	0.09239
4.50	15.90	0.0849	8.67	0.1153	0.0773	8.55	0.1169
5.00	19.63	0.0688	7.03	0.1423	0.0626	6.93	0.1443
5.50	23.80	0.0568	5.80	0.1726	0.0518	5.72	0.1749
6.00	28.30	0.0477	4.88	0.2052	0.0435	4.81	0.2080
6.50	33.20	0.0407	4.15	0.2407	0.0371	4.09	0.2440
7.00	38.50	0.0351	3.58	0.2791	0.0320	3.53	0.2830

Technical parameters of Ferro-Chromium-Aluminum resistance alloy wires(3)
Diameter (mm)	Sectional area (mm²)	0Cr21Al6Nb(μΩ • m 1.45±0.07)			0Cr27Al7Mo2(μΩ • m 1.53±0.07)
Diameter (mm)	Sectional area (mm²)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (kg/m)
0.10	0.0078	184.6	17933	0.0000558	194.8	17933	0.0000558
0.12	0.0113	128.2	12453	0.0000803	135.3	12453	0.0000803
0.15	0.0177	82.1	7970	0.000125	80.6	7970	0.000125
0.17	0.0227	63.9	6205	0.000161	67.4	6205	0.000161
0.19	0.0284	51.1	4968	0.000201	54.0	4968	0.000201
0.21	0.0346	41.9	4066	0.000246	44.2	4066	0.000246
0.25	0.0491	29.5	2870	0.000349	31.2	2870	0.000349
0.27	0.0573	25.0	2460	0.000407	26.7	2460	0.000407
0.29	0.0661	22.0	2131	0.000469	23.2	2132	0.000469
0.31	0.0755	19.2	1866	0.000536	20.3	1866	0.000536
0.35	0.0962	15.1	1464	0.000683	15.9	1464	0.000683
0.40	0.1257	11.54	1121	0.000892	12.19	1121	0.000892
0.45	0.1590	9.12	886	0.001129	9.62	886	0.001129
0.50	0.1963	7.38	717	0.001394	7.79	717	0.001394
0.60	0.283	5.13	498	0.00201	5.41	498	0.00201
0.70	0.385	3.77	366	0.00273	3.98	366	0.00273
0.80	0.503	2.88	280	0.00357	3.04	280	0.00357
0.90	0.636	2.28	221	0.00452	2.41	221	0.00452
1.00	0.785	1.85	179.5	0.00557	1.95	179.5	0.00557
1.20	1.131	1.282	124.5	0.00803	1.35	124.5	0.00803
1.40	1.539	0.942	91.5	0.01093	0.994	91.5	0.01093
1.60	3.01	0.721	70.1	0.01427	0.761	70.1	0.01427
1.80	2.54	0.570	55.5	0.01803	0.601	55.5	0.01803
2.00	3.14	0.462	44.8	0.0229	0.487	44.8	0.0229
2.20	3.80	0.381	37.0	0.0270	0.402	37.0	0.0270
2.50	4.91	0.295	28.7	0.0349	0.312	28.7	0.0349
3.00	7.07	0.205	19.92	0.052	0.216	19.92	0.052
3.50	9.62	0.1510	14.64	0.0683	0.159	14.64	0.0683
4.00	12.57	0.1154	11.21	0.0892	0.1218	11.21	0.0892
4.50	15.90	0.0912	8.86	0.1129	0.0962	8.86	0.1129
5.00	19.63	0.0738	7.17	0.1394	0.0779	7.17	0.1394
5.50	23.80	0.0610	5.92	0.1690	0.0644	5.92	0.1690
6.00	28.30	0.0513	4.98	0.201	0.0541	4.98	0.201
6.50	33.20	0.0437	4.24	0.236	0.0461	4.24	0.236
7.00	38.50	0.0377	3.66	0.273	0.0398	3.66	0.273

Technical parameters of Ferro-Chromium-Aluminum resistance alloy wires(4)
Diameter (mm)	0Cr20Al6RE(1.4±0.07μΩ • m)			0Cr24Al6RE(1.48±0.07μΩ • m)
Diameter (mm)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (g/m)	Ohm per meter (20ºC Ω/m)	Length per kg (m/kg)	Weight per meter (g/m)
0.1	178.254	17683.90	0.05655	188.440	17932.97	0.05576
0.11	147.317	14614.79	0.06842	155.735	14820.63	0.06747
0.12	123.787	12280.48	0.08143	130.861	12453.45	0.08030
0.13	105.476	10463.84	0.09557	111.503	10611.22	0.09424
0.15	79.224	7859.51	0.12723	83.751	7970.21	0.12547
0.17	61.679	6119.00	0.16343	65.204	6205.18	0.16116
0.19	49.378	4898.59	0.20414	52.199	4967.58	0.20131
0.21	40.420	4009.95	0.24938	42.730	4066.43	0.24592
0.25	28.521	2829.42	0.35343	30.150	2869.27	0.34852
0.27	24.452	2425.77	0.41224	25.849	2459.94	0.40651
0.29	21.195	2102.72	0.47557	22.407	2132.34	0.46897
0.31	18.549	1840.16	0.54343	19.609	1866.07	0.53588
0.35	14.551	1443.58	0.69272	15.383	1463.92	0.68310
0.40	11.141	1105.24	0.90478	11.777	1120.81	0.89221
0.45	8.803	873.28	1.14511	9.306	885.58	1.12921
0.50	7.130	707.36	1.41372	7.538	717.32	1.39408
0.55	5.893	584.59	1.71060	6.229	592.83	1.68684
0.60	4.951	491.22	2.03575	5.234	498.14	2.00748
0.65	4.219	418.55	2.38918	4.460	424.45	2.35600
0.70	3.638	360.90	2.77088	3.846	365.98	2.73240
0.80	2.785	276.31	3.61911	2.944	280.20	3.56885
0.85	2.467	244.76	4.08564	2.608	248.21	4.02889
0.90	2.201	218.32	4.58044	2.326	221.39	4.51682
0.95	1.975	195.94	5.10351	2.088	198.70	5.03263
1.00	1.783	176.84	5.65486	1.884	179.33	5.57632
1.1	1.4732	146.15	6.84238	1.5574	148.21	6.74735
1.2	1.2379	122.80	8.14300	1.3086	124.53	8.02990
1.3	1.0548	104.64	9.55672	1.1150	106.11	9.42398
1.4	0.9095	90.22	11.08353	0.9614	91.49	10.92959
1.5	0.7922	78.60	12.72344	0.8375	79.70	12.54673
1.6	0.6963	69.08	14.47645	0.7361	70.05	14.27538
1.7	0.6168	61.19	16.34255	0.6520	62.05	16.11557
1.8	0.5502	54.58	18.32175	0.5816	55.35	18.06728
1.9	0.4938	48.99	20.41405	0.5220	49.68	20.13052
2.0	0.4456	44.21	22.61945	0.4711	44.83	22.30529
2.2	0.3683	36.54	27.36953	0.3893	37.05	26.98940
2.4	0.3095	30.70	32.57201	0.3272	31.13	32.11962
2.6	0.2637	26.16	38.22687	0.2788	26.53	37.69594
2.8	0.2274	22.56	44.33412	0.2404	22.87	43.71837
3.0	0.1981	19.65	50.89376	0.2094	19.93	50.18690
3.2	0.1741	17.27	57.90579	0.1840	17.51	57.10154
3.4	0.1542	15.30	65.37020	0.1630	15.51	64.46229
3.6	0.1375	13.64	73.28701	0.1454	13.84	72.26914
3.8	0.1234	12.25	81.65621	0.1305	12.42	80.52209
4.0	0.1114	11.05	90.47779	0.1178	11.21	89.22116
4.5	0.0880	8.73	114.51096	0.0931	8.86	112.92053
5.0	0.0713	7.07	141.37155	0.0754	7.17	139.40806
5.5	0.0589	5.85	171.05958	0.0623	5.93	168.68375
6.0	0.0495	4.91	203.57503	0.0523	4.98	200.74760
6.5	0.0422	4.19	238.91792	0.0446	4.24	235.59962
7.0	0.0364	3.61	277.08824	0.0385	3.66	273.23979
7.5	0.0317	3.14	318.08599	0.0335	3.19	313.66813
8.0	0.0279	2.76	361.91117	0.0294	2.80	356.88462
8.5	0.0247	2.45	408.56378	0.0261	2.48	402.88928
9.0	0.0220	2.18	458.04382	0.0233	2.21	451.68210
